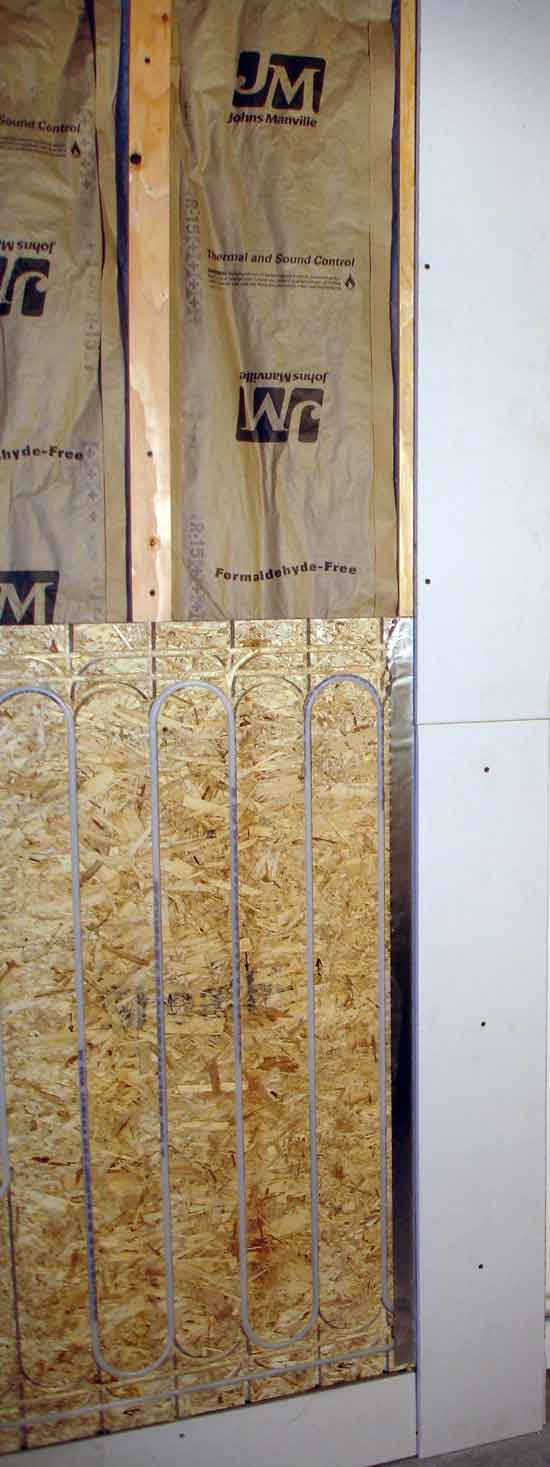

New construction of Radiant Wall Panel System.
(Top and bottom of wall).
(Top and bottom of wall).
Aluminum heat transfer sheeting
Six-inch baseboard spacer
(one-half inch thick)
(one-half inch thick)

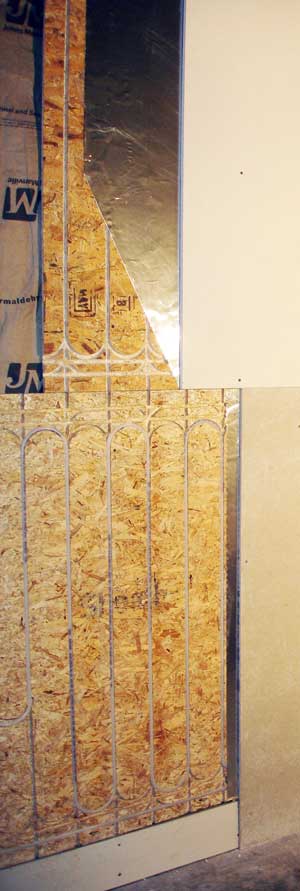

Retrofitting of Radiant Wall Panel System.
(Bottom half of wall only).
(Bottom half of wall only).
Existing wallboard
New wallboard
New wallboard
Cut line for Radiant Panel insertion
Cut line for Radiant Panel insertion
Cemetitious wall
One-inch or heavier insulation
foam board, glued to wall
foam board, glued to wall
Radiant wall panel glued to foam
board, drill 1/8-inch and nail wall panels
with four concrete nails each
board, drill 1/8-inch and nail wall panels
with four concrete nails each
5/16-inch PEX tubing
Aluminum heat transfer sheeting
New wall board
(Screwed to radiant wall panels)
(Screwed to radiant wall panels)
Six-inch baseboard spacer

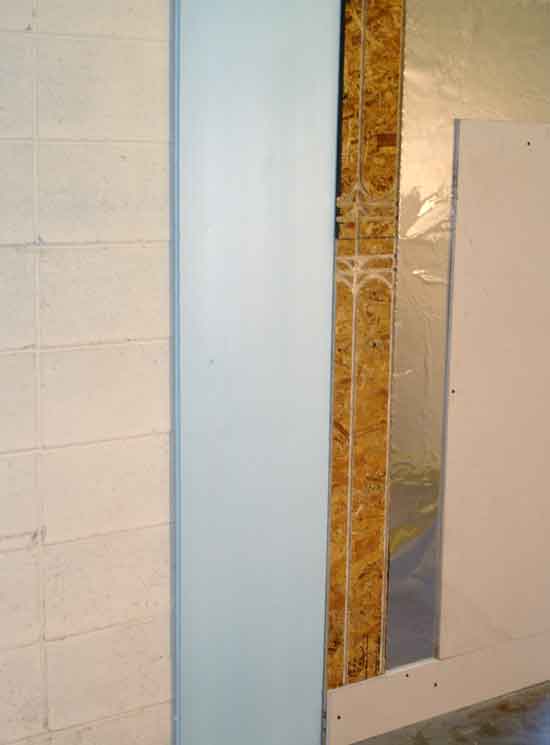

Radiant Wall Panel System over poured concrete or cement block walls

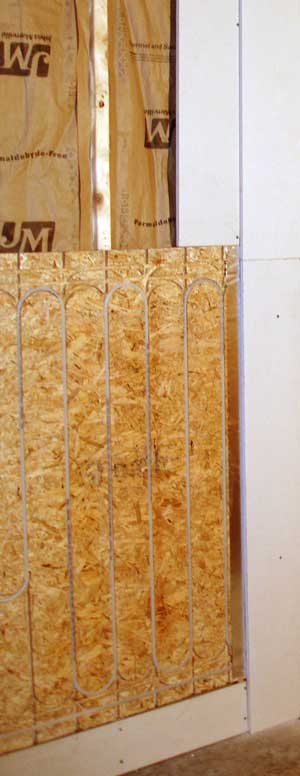

New construction of Radiant Wall Panel System
(Bottom half of wall only)
(Bottom half of wall only)
1/2-inch furring strips over studs
Wall board
Aluminum heat transfer sheeting
Radiant wall panel
5/16-inch PEX tubing
Six-inch baseboard spacer
Retrofitting of Radiant Wall Panel system
(Panels over existing wall board)
(Panels over existing wall board)
5/16-inch PEX tubing
Existing wall board
New wall board
Aluminum heat transfer sheeting over
radiant wall panel
radiant wall panel
Radiant wall panel installed horizontally
under window
under window
Six-inch baseboard spacer
Aluminum heat transfer sheeting
5/16-inch PEX tubing
5/16-inch PEX tubing
Radiant wall panel
New wallboard
Radiant wall panel

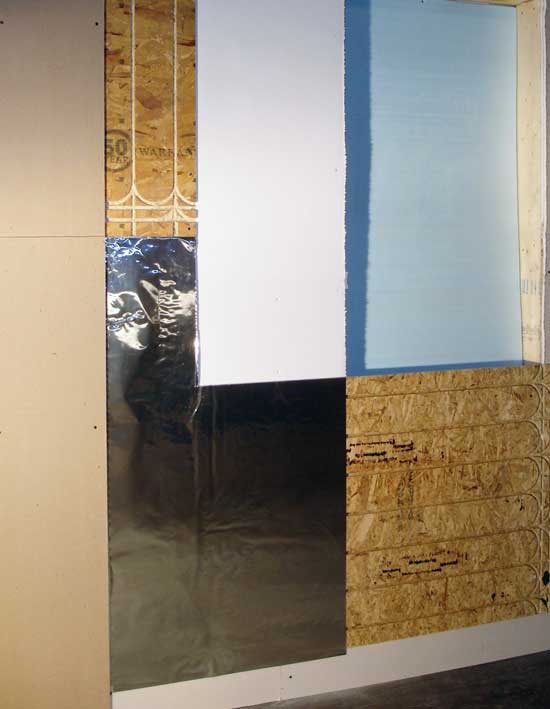

Installation Applications of Wall Heating Panels
